Product Specifications
XLR Inputs:
Balanced Left and Right
TRS 1/4 Audio Outputs:
OUT 1 and OUT 2 (2 x ¼” TRS balanced output cables included)
Left and Right Trim Controls:
Individually adjust the output levels of each channel
M/S Switch:
Select Mono or Stereo output mode
L and R LED Indicator:
When the volume of LEFT and/or RIGHT channel is too high, the red LED will light for warning; please turn down the volume controller to a comfortable level.
Line/Mic Switches/PH Switches:
Selects LINE when camera is set to Line output. Select MIC when camera is set to MIC input. Selects PH when any channel requires phantom power
Level Meter:
-18 to +3 dB in 3 DB increments
Input Level:
MIC 0dB on the level meter at -44 dBu input. LINE 0 dB on the level meter at +10 dBu input
Gain:
Unity
Frequency response:
10 Hz to 100 kHZ, -30 dBu input
THD:
Less than 0.01% @ 1 KHz, -30 dBu input
S/N Ratio:
80 dB @ 1kHz, -30 dBu input
Battery:
1x 9V alkaline or lithium battery (battery not included)
Battery Duration (No Phantom):
6 hours approx. with alkaline battery. 12 hours approx. with lithium battery
Dimensions:
155 x 98 x 64mm
Weight:
615g
Box Contents:

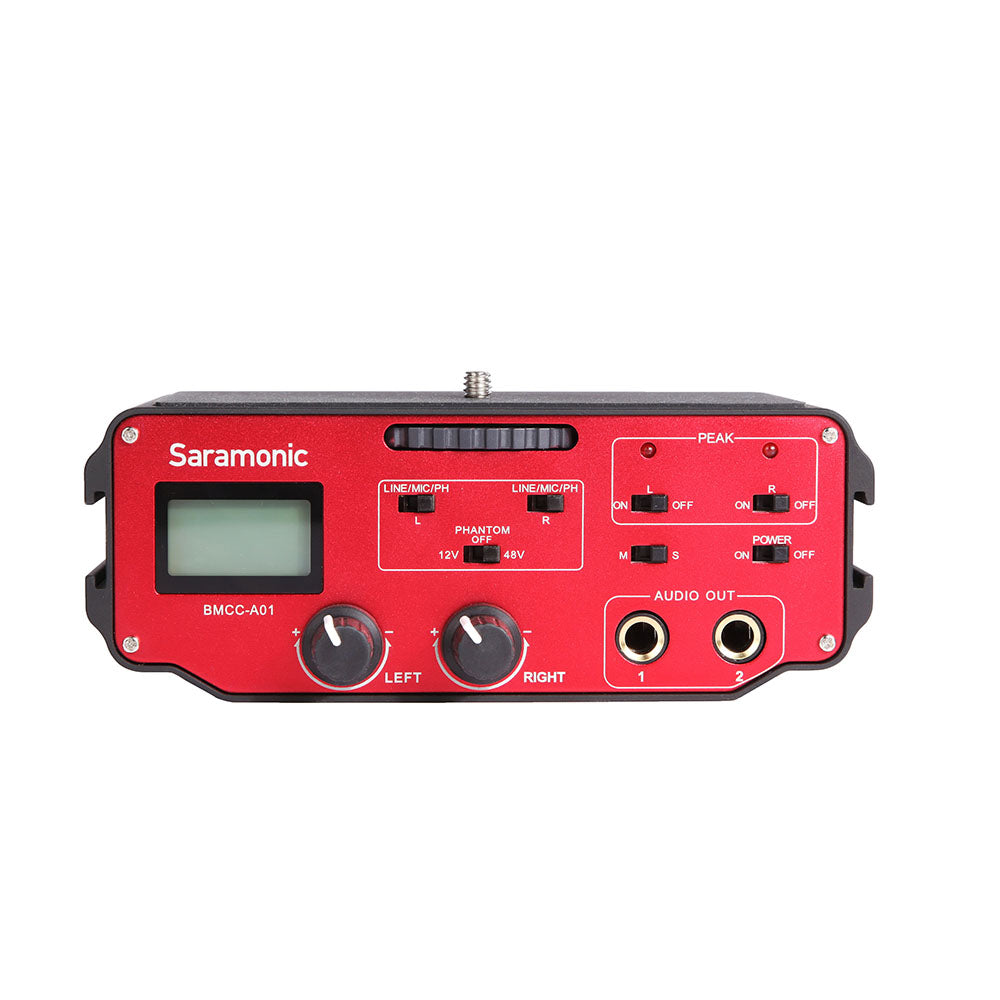

BMCC-A01 main unit, two 1/4” TRS Balanced Output Cables, user manual, warranty card
